Question Paper Code: 67/2022/OL
Category Code: 192/2020
Exam: Instructor Grade I in Chemical Engineering (Engineering Colleges)
Date of Test 17-08-2022
Department Technical Education
Alphacode A

Question1:-The pressure drop in pumping water at 30°C (viscosity = 1 cP) through a pipe of 5 cm diameter through a distance of 100 m at a velocity 0.002 m/s is
A:-2.56 Pa
B:-25.6 Pa
C:-256 Pa
D:-0.256 Pa

Question2:-If the pressure measurement in a vessel gives a reading of 690 mm Hg, where the barometer reads 755 mm Hg, the pressure reading is reported as
A:-690 mm Hg vacuum
B:-70 mm Hg vacuum
C:-5 mm Hg vacuum
D:-65 mm Hg vacuum

Question5:-Liquid A flows through a pipe under laminar flow. Liquid B flows through another pipe of same diameter under turbulent flow. The average flow velocity for turbulent flow is 0.86 times the centre line velocity. For having equal volumetric flow rates, the ratio of maximum velocities, 𝑉max,A/𝑉maxB is
A:-0.43
B:-0.86
C:-1.72
D:-2.0

Question6:-Match the following.
I                                                 II
J.  Ideal fluid                          P. Velocity profile flattens
K. Turbulent flow                   Q.  Flow in layers
L.  Laminar flow                     R. Velocity profile developing
M. Entrance length                 S. Potential flow
A:-J-Q, K-R, L-S, M-P
B:-J-Q, K-P, L-S, M-R
C:-J-S, K-P, L-Q, M-R
D:-J-S, K-R, L-Q, M-P

Question7:-In a centrifugal pump, cavitation occurs when the pressure at the impeller eye becomes
A:-less than atmospheric pressure
B:-more than atmospheric pressure
C:-more than the liquid vapour pressure
D:-less than the liquid vapour pressure

Question8:-image
A:-0.016 and 0.045
B:-0.016 and 0.0045
C:-0.16 and 0.045
D:-0.16 and 0.0045

Question9:-Match the following.
I                                                 II
P.   Globe valve                       1.  Unidirectional flow
Q.  Gate valve                         2.  Protect pump from excessive pressure
R.  Relief valve                        3.  Quick open
S.  Check valve                       4.   Flow control
A:-P-4, Q-3, R-2, S-1
B:-P-3, Q-4, R-2, S-1
C:-P-4, Q-2, R-3, S-1
D:-P-3, Q-4, R-1, S-2
Question deleted

Question10:-Which of the following combination of the flow pattern can be observed in an open turbine ?
A:-Axial only
C:-Mixed flow

Question11:-The terminal settling velocity of a spherical particle in gravitational settling under Stoke's law regime
A:-Varies linearly with the particle diameter
B:-Varies linearly with the fluid viscosity
C:-Varies directly with the square particle diameter
D:-Varies inversely with the particle density

Question12:-Bond's crushing law states that, the work required to form a product of specified size from a very large size feed is proportional to
A:-square root of surface to volume ratio of product
B:-square root of surface to volume ratio of feed
C:-square of surface to volume ratio of product
D:-square of surface to volume ratio of feed

Question13:-Which of the following is most suitable for transportation of sticky material ?
A:-Belt conveyor
B:-Chain conveyor
C:-Screw conveyor
D:-Apron conveyor

Question14:-Match the following.
I                                            II
P.  Attrition                                1. Gyratory crusher
Q. Attrition and impact               2. Fluid energy mill
R. Compression                         3. Blake Jaw crusher
S. Compression and impact        4. Ball mill
A:-P-4, Q-2, R-1, S-3
B:-P-2, Q-4, R-3, S-1
C:-P-4, Q-2, R-3, S-1
D:-P-2, Q-4, R-1, S-3

Question15:-Choose the incorrect statement.
A:-Centrifugal pumps deliver liquid at uniform pressure without pulsations.
B:-Reciprocating pumps operate at nearly constant efficiency over a wide range of discharge rates.
C:-For a centrifugal pump, the valves in the discharge line may be closed without injuring the pump.
D:-Both centrifugal and reciprocating pumps are subject to air binding.

Question16:-Which of the following is a positive displacement pump ?
A:-Centrifugal pump
B:-Gear pump
C:-Axial pump
D:-Diffuser pump

Question17:-When the diameter of the column is small with deep bed of solids, which problem is prone to occur in a fluidized bed ?
A:-Slugging
B:-Channeling
C:-Entrainment
D:-Circulation

Question18:-What is the meaning of the following expression : -150 + 200 mesh particles ?
A:-Pass through 150 and retained in 200
B:-Does not pass through 150 and 200
C:-Pass through both 150 and 200
D:-Pass through 200 and retained in 150

Question19:-A centrifugal pump is used to pump water (density = 1000 kg/𝑚3 ) from an inlet pressure of  105 Pa to an outlet pressure of 2×105
Pa. The exit is at an elevation of 10 m above the pump. The cross sectional area of inlet and outlet pipes are 10−3𝑚2 . The average velocity of fluid is 10 m/s. The acceleration due to gravity is 10 m/𝑠2. Neglect the frictional losses in the system. The pump has an efficiency of 80%. The power required for the pump in head of water is
A:-15 m
B:-10.33 m
C:-25 m
D:-20 m

Question20:-Which of the following Mixers are used for Cohesive Solids ?
A:-Change can mixer
B:-Tumbling mixer
C:-Ribbon blender
D:-Impact wheels

Question21:-One Btu of heat is supplied to 100 g water at 30°C and atmospheric pressure. There is no heat losses to the surroundings. The temperature of water will increase to
A:-2.52°C
B:-0.252°C
C:-32.52°C
D:-30.252°C

Question22:-The molar composition of a gas mixture is 10% 𝐻2 , 20% 𝑂2 , 30% 𝑁2 and the rest water vapour. If half of the water vapour is condensed, the molar composition of 𝑂2 in the resulting gas will be
A:-2%
B:-25%
C:-30%
D:-40%

Question23:-A solution of NaOH is prepared by dissolving 40 g NaOH in 90 g water. The composition of NaOH in the solution as mole fraction and mass fraction are approximately
A:-0.2 and 0.44
B:-0.2 and 0.69
C:-0.167 and 0.44
D:-0.167 and 0.31

Question24:-Pure carbon is completely burnt in oxygen. The flue gas analysis shows 70% 𝐶𝑂2 , 20% CO and 10%𝑂2 . The percent excess oxygen used is
A:-0
B:-10
C:-15
D:-20

Question25:-A sample of gas at 27°C and 1 atm occupies a volume of 5L. The volume occupied by the same gas sample at 47°C is
A:-10.2 L
B:-2.9 L
C:-5.3 L
D:-8.7 L

Question26:-Choose the incorrect statement.
A:-The partial pressure of a gas in a mixture of gases is the product of total pressure and its mole fraction.
B:-According to Dalton's law, the total pressure exerted by a gas mixture is the sum of partial pressures of individual components of the gas mixture.
C:-Dalton's law of partial pressures assumes that the individual component gases obey ideal gas law.
D:-Dalton's law of partial pressures is applicable to a gas mixture whose individual components obey van der Waals equation.

Question27:-A sample of gas mixture has 20% 𝑂2 and 80% 𝑁2 on volume basis. The weight percentage 𝑂2 of in the gas mixture is
A:-20
B:-22.2
C:-24.8
D:-28.4

Question28:-Which of the following is a byproduct of petroleum refining ?
A:-Fuel oil
B:-Lubricating oil
C:-Sulfur
D:-Copper

Question29:-Which of the following has maximum hydrogen to carbon ratio (by weight) ?
A:-Gasoline
B:-Naphtha
C:-Diesel oil
D:-Fuel oil

Question30:-Which of the following has higher heat of combustion ?
A:-Aromatics
B:-Olefins
C:-Naphthenes
D:-Paraffins

Question31:-In petroleum refining operations, the process used for converting paraffins and naphthenes to aromatics is
A:-Alkylation
B:-Hydrocracking
C:-Catalytic reforming
D:-Hydrotreating

Question32:-The octane number decreases in the order
A:-Naphthenes > Aromatics > Isoparaffins > Olefins > n-paraffins
B:-Olefins > Isoparaffins > Aromatics > Naphthenes > n-paraffins
C:-Isoparaffins > Olefins > Naphthenes > Aromatics > n-paraffins
D:-Aromatics > Isoparaffins > Naphthenes > Olefins > n-paraffins

Question33:-Hydrotreating is used for
A:-Improving octane number of gasoline
B:-Removing sulphur and nitrogen from petroleum fractions
C:-Removing water from crude oil
D:-Improving cetane number of diesel

Question34:-Which nuclear fuel is found abundantly in nature ?
A:-Uranium
B:-Thorium
C:-Plutonium

Question35:-Which of the two nuclear fuels are produced artificially ?

Question36:-What is ocean thermal energy conversion ?
A:-Harnessing the temperature differences between surface waters and deep ocean waters
B:-Harnessing the temperature differences between the coastal waters and deep ocean waters
C:-Harnessing the heat energy from the underwater volcanoes
D:-Harnessing the heat energy from the tides in ocean

Question37:-Which is the correct sequence in formation of coal ?
A:-Wood→lignite→peat→bituminous coal
B:-Lignite→peat→anthracite→bituminous coal
C:-Wood→peat→lignite→bituminous coal
D:-Lignite→anthracite→peat→bituminous coal

Question38:-The increasing order of calorific value is
A:-Lignite, peat, anthracite coal, bituminous coal
B:-Peat, lignite, anthracite coal, bituminous coal
C:-Wood, lignite, bituminous coal, anthracite coal
D:-Wood, lignite, anthracite coal, bituminous coal

Question39:-Select the incorrect statement regarding solar energy.
A:-Solar energy is cheap, safe and renewable.
B:-Solar photo voltaic cells are suitable electrical energy source for remote locations.
C:-Solar photo voltaic cells are reliable and offers long life.
D:-Solar photo voltaic cells provide continuous supply of electricity.

Question40:-Which among the following is not a potential geothermal power station in India ?
A:-Puga
B:-Vizhinjam
C:-Tatapani
D:-Tuwa

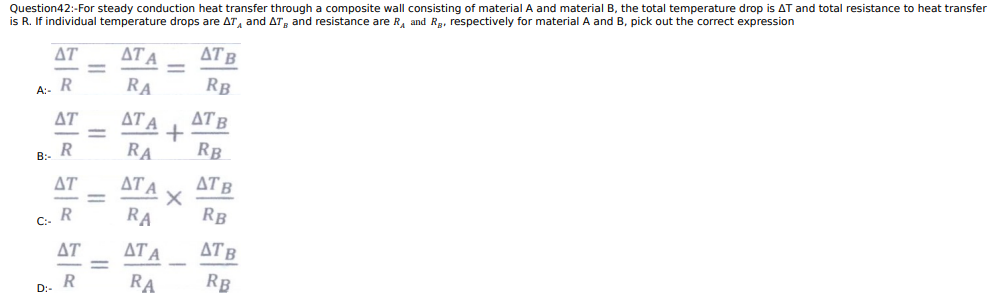

Question41:-Heat transfer by conduction occurs through a slab of thickness 10 cm having thermal conductivity 1W/mK. If area perpendicular to direction of heat transfer is 1𝑚²conduction resistance in this slab is
A:-1 K/W
B:-0.1 K/W
C:-0.01 K/W
D:-10 K/W

Question43:-A spherical container is provided with an insulation to reduce heat loss. On increasing the thickness of this insulation layer, heat loss
A:-Reduces
B:-Increases
C:-Increases and then reduces
D:-Depends on the critical thickness of insulation

Question44:-Heat transfer apparatus are mostly (except cryogenic liquids) designed in such a way that the temperature drop in the film of boiling liquid is
A:-More than critical temperature drop
B:-Same as critical temperature drop
C:-Less than critical temperature drop
D:-Both (A) and (B)

Question45:-Inside and outside heat transfer coefficients for a fluid flowing through a tube are respectively 400 W/𝑚²K and 100 W/𝑚²K. If the tube material possesses very high thermal conductivity, overall heat transfer coefficient is
A:-80 W/𝑚²K
B:-300 W/𝑚²K
C:-500 W/𝑚²K
D:-120 W/𝑚²K

Question46:-Pick correct statement for flow over a flat plate.
A:-For Prandtl number ≈ 1, thermal boundary layer is thicker than hydrodynamic boundary layer
B:-For Prandtl number > 1, thermal boundary layer is thicker than hydrodynamic boundary layer
C:-For Prandtl number < 1, thermal boundary layer is thicker than hydrodynamic boundary layer
D:-For Prandtl number ≈ 1, hydrodynamic boundary layer is thicker than thermal boundary layer

Question47:-Use of baffles in shell and tube heat exchangers results in
A:-Increase in flow path and velocity of shell fluid
B:-Decrease in flow path and increase in velocity of shell fluid
C:-Increase in flow path and velocity of tube fluid
D:-Decrease in flow path and increase in velocity of tube fluid

Question48:-When thick liquor is highly viscous, which of the following feeding methods is preferred ?
A:-Forward feed
B:-Backward feed
C:-Parallel feed
D:-All the above give equal performance

Question49:-Steam consumption in an evaporator is given by
A:-Capacity × Economy
B:-Capacity/Economy
C:-Economy/Capacity
D:-None of the above

Question50:-Compared to single effect evaporator, for multiple effect evaporators
A:-Both economy and capacity increase
B:-Economy reduces and capacity increases
C:-Economy increases and capacity reduces
D:-Both economy and capacity reduce

Question51:-Absorption factor is
A:-Ratio of slope of equilibrium line to that of operating line
B:-Ratio of slope of operating line to that of equilibrium line
C:-Product of slope of equilibrium line and that of operating line
D:-Sum of slope of equilibrium line and that of operating line

Question52:-Fick's first law of diffusion is

Question53:-As temperature increases, equilibrium solubility of a gas in a liquid during absorption
A:-increases
B:-decreases
C:-remains constant
D:-cannot be predicted

Question54:-Total reflux condition used in a distillation column leads to
A:-Infinite number of stages
B:-Minimum condenser heat duty
C:-Minimum number of stages
D:-Both (B) and (C)

Question55:-In extractive distillation, the solvent added
A:-Alter relative volatility of the mixture
B:-Is present in the overhead stream
C:-Is of high volatility
D:-All the above

Question56:-Raoult's law and Henry's law are used to get equilibrium data for
A:-Dilute non-ideal solutions and ideal solutions respectively
B:-Concentrated non-ideal solutions and ideal solutions respectively
C:-Ideal solutions and dilute non-ideal solutions respectively
D:-Both ideal and non-ideal solutions

Question57:-In an air-water vapour mixture, if PS and RS represent percent saturation and relative saturation respectively, which of the following is correct ?
A:-PS and RS are not related
B:-PS > RS
C:-PS = RS
D:-PS < RS

Question58:-Which of the following is not a desirable property for a good leaching solvent ?
A:-High vapour pressure
B:-Low density
C:-Low viscosity
D:-High solubility of the solute in the solvent

Question59:-The cooling tower preferred in applications with large cooling duties is
A:-Forced draft tower
B:-Induced draft tower
C:-Mechanical draft tower
D:-Natural draft tower

uestion60:-Rate controlling mechanism during constant-rate period in drying of a material is
A:-External mass transfer between the material surface and bulk gas
B:-Internal diffusion of moisture through pores of the material
C:-Capillary flow
D:-Vapour diffusion

Question61:-Which of the following is/are correct about soap manufacturing ?
i. The kettle process is much better than the Sharples process
ii. The spent lye is repeatedly recycled in four state operations in the Sharples process
iii. Steam consumption per kg of fat is high in the kettle process
iv. All the stages of the kettle process are carried out in automatically controlled separate   units.
A:-Only i and ii
B:-Only ii and iii
C:-Only iii and iv
D:-Only ii, iii and iv

Question62:-Match the following columns of I and II about the paper and pulp manufacturing industry.
I                                   II
P.   Sulfate pulp                      1. Kraft
Q.  Sulfite pulp                       2. Magnifite
3. Brown color pulp
4. Bamboo and Hardwood preferable
A:-P-1, P-3, Q-4
B:-P-2, P-4, Q-1
C:-P-1, P-4, Q-2
D:-P-3, Q-1, Q-3

Question63:-Which of the following is not a raw material for soap manufacture ?
A:-Refined tallow
B:-Greese
C:-Lime
D:-Caustic soda
Question deleted

Question64:-For Sulphuric acid manufacture by contact process which of the following sequence is followed ?
A:-Furnance → Converter → Evaporator
B:-Furnance → Converter → Absorber
C:-Furnance → Evaporator → Absorber
D:-Converter → Furnace → Absorber

Question65:-Match the following columns of raw material with their respective manufacturing process.
P.   Soda ash                        1.  Chamber process
Q.  Caustic soda                   2.  Wet process
R.  Phosphoric acid               3.  Diaphragm process
S.  Sulphuric acid                 4.  Solvay process
A:-P-4, Q-1, R-3, S-2
B:-P-4, Q-2, R-3, S-1
C:-P-2, Q-1, R-3, S-4
D:-P-4, Q-3, R-2, S-1

Question66:-Which of the following is a detergent ?
A:-Benzene hexa chloride
B:-PVC
C:-Alkyl benzene sulphonate
D:-Cellulose nitrate

Question67:-Which of the following process contributes to the major percentage of caustic soda production ?
A:-Mercury process
B:-Diaphragm process
C:-Membrane process
D:-Chemical process

Question68:-Match the following classification of water treatment methods in column I with column II.
I                                                II
P.   Temporary hardness                      1.  Activated carbon
Q.  Permanent hardness                      2.  Zeolite softening
R.  Deodorization                                3.  Ca, Mg bicarbonates
S.  Ion exchange                                4.  Ca, Mg Sulfates or Chlorides
A:-P-3, Q-4, R-1, S-2
B:-P-4, Q-3, R-1, S-2
C:-P-4, Q-1, R-3, S-2
D:-P-1, Q-3, R-2, S-4

Question69:-The presence of _________ increases the brilliancy and strength of optical glass and ________ imparts high density and high refracting power.
A:-Potassium carbonate and borax
B:-Barium compounds and red lead oxide
C:-Borax and boric acid
D:-Dolomite and Tin oxide

Question70:-Match the following drugs in Column I with their raw material in Column II.
I                                           II
P.  Parathion                         1.  Sodium hydroxide
Q.  DDT                                2.  Methanol
3.  Ethanol
4.  Divinyl benzene
A:-P-1, Q-3
B:-P-2, Q-1
C:-P-3, Q-4
D:-P-4, Q-1

Question71:-In the manufacture of soda ash by Solvay process, the cost of product ________ as the tower height ________ and ________ with __________ in NaCl losses.
A:-increases, decreases, increases, decreases
B:-increases, increases, decreases, decreases
C:-decreases, increases, increases, decreases
D:-decreases, increases, decreases, decreases

Question72:-Which one of following processes used in the production of caustic soda ?
A:-Brine purifier → multistage evaporator → diaphragm cell
B:-Brine purifier → diaphragm cell → Absorber
C:-Brine purifier → diaphragm cell → multistage evaporator
D:-Diaphragm cell → multistage evaporator → Absorber

Question73:-Which one of the following process sequences is used in the sugar industry ?

Question74:-Match the following classification of refractories in Column I with their raw materials in
Column II.
I                                  II
P.  Acidic                   1.  Carbon graphite, chromite
Q. Neutral                 2.  Alumina, Silica
R. Basic                    3.  Magnesite, dolomite
4.  Copper, silicone
A:-P-1, Q-3, R-2
B:-P-2, Q-1, R-3
C:-P-2, R-4, R-3
D:-P-3, Q-1, R-4

Question75:-Which of the following are post Taning operations ?
A:-Deliming and bathing
B:-Soaking and Liming
C:-Shaving, Splitting
D:-Oil taning and chrome taning

Question76:-State whether the following statements about fermentation are not correct.
I.  Fermentation is the only process for synthesizing some complex compounds.
II.  Unwanted components cannot be removed from the process.
III.  It works under high drastic and economic conditions compared to chemical process.
A:-Only I and II
B:-Only II and III
C:-Only III
D:-All of the above

Question77:-Match the process in group I with the catalyst used in group II.
Group I                                    Group II
P.  Sulphuric acid manufacture                1.  Platinum
Q. Vegetable oil hydrogenation                2.  Vanadium pentoxide
3.  Iron
4.  Raney nickel
A:-P-2, Q-1
B:-P-2, Q-4
C:-P-3, Q-1
D:-P-4, Q-2

Question78:-Multiple effect evaporators are commonly used in the manufacture of
P.  Paper
Q.  Superphosphate
R.  Sugar
S.  Fats
A:-P and Q
B:-P and R
C:-P and S
D:-R and S

Question79:-Pair the following reactors with their products.
P.  Regenerator - tank furnace       1.  Citric acid
Q. Fermenter                               2.  Pulp and paper
R. Continuous digester                  3.  Glass
A:-P-2, Q-1, R-3
B:-P-2, Q-3, R-1
C:-P-3, Q-2, R-1
D:-P-3, Q-1, R-2

Question80:-In Kraft pulping, fibrous material is cooked in the solution of
A:-Sodium hydroxide and sodium carbonate
B:-Sodium hydroxide and sodium sulfate
C:-Sodium carbonate and sodium sulfate
D:-None of the above

Question81:-The time constant of a first order system with resistance R and capacitance C is
A:-RC
B:-R+C
C:-1/RC
D:-R-C

Question82:-When a bare thermocouple is covered by a protective sheath, the response becomes
A:-Slower and oscillatory
B:-Faster and oscillatory
C:-Slower and non-oscillatory
D:-Faster and non-oscillatory

Question83:-The closed loop poles of a stable second order system could be
A:-Complex conjugate
B:-Real and negative
C:-Real and positive
D:-None of the above

Question84:-If the atmospheric temperature increases at constant absolute humidity, the relative humidity would
A:-increase
B:-decrease
C:-constant
D:-none of the above

Question85:-In a process of heating of air at constant pressure, the dry bulb temperature of inlet and outlet air are 35°C and 75°C respectively. The inlet air has a wet bulb temperature of 28°C and a humidity of 28%. Comment on the dew point temperature of inlet air.
A:-Greater than 75°C
B:-Equal to 28°C
C:-In between 28°C and 75°C
D:-Less than 28°C

Question86:-The basic working principle of a pressure gauge is
A:-Seebeck effect
B:-Hooke's law
C:-Peltier effect
D:-None of the above

Question87:-The monomeric units of Nylon 66 are
B:-Hexamethylenediamine and Terephthalic acid
D:-None of the above

Question88:-Which among the following is thermosetting plastic ?
A:-Silicone
B:-Polyester
C:-Polyurethane
D:-All of the above

Question89:-Thermocol is produced from
A:-Polypropylene
B:-Polystyrene
C:-PVC
D:-Polyethylene

Question90:-Polymers produced by using single type of monomer
A:-Homopolymer
B:-Copolymer
C:-Block polymer
D:-Graft polymer

Question91:-Under constant drying conditions, when drying takes place from all surfaces, during constant rate period, the rate of drying is
A:-Directly proportional to solid thickness
B:-Independent of solid thickness
C:-Inversely proportional to solid thickness
D:-Directly proportional to the square of solid thickness

Question92:-Production mechanism of copolymers
A:-Step-growth polymerization
B:-Chain-growth polymerization
C:-Both 1 and 2
D:-None of the above

D:-All of the above

Question94:-What is Heinrich ratio which relates the number of near miss incidents and minor injuries to a major injury ?
A:-250:25:1
B:-300:25:1
C:-300:29:1
D:-250:29:1

Question95:-Bhopal Gas Tragedy happened on
A:-2nd December 1984
B:-2nd January 1985
C:-2nd November 1984
D:-2nd December 1985

Question96:-Least effective control in safety hierarchy
A:-PPE
B:-Elimination
D:-Engineering control

Question97:-The limit of dissolved oxygen in water for the survival of aquatic plants and animals.
A:-100 mg/l
B:-5 mg/l
C:-0.1 mg/l
D:-50 mg/l

Question98:-Accident incident theory is proposed by
A:-Heinrich
B:-Domino
C:-Peterson
D:-None of the above

Question99:-The principle of Electrostatic precipitator
A:-Corona discharge
B:-Precipitation
C:-Sedimentation
D:-None of the above
